Twin Chamber Dual Circuit Brake Fluid Reservoir

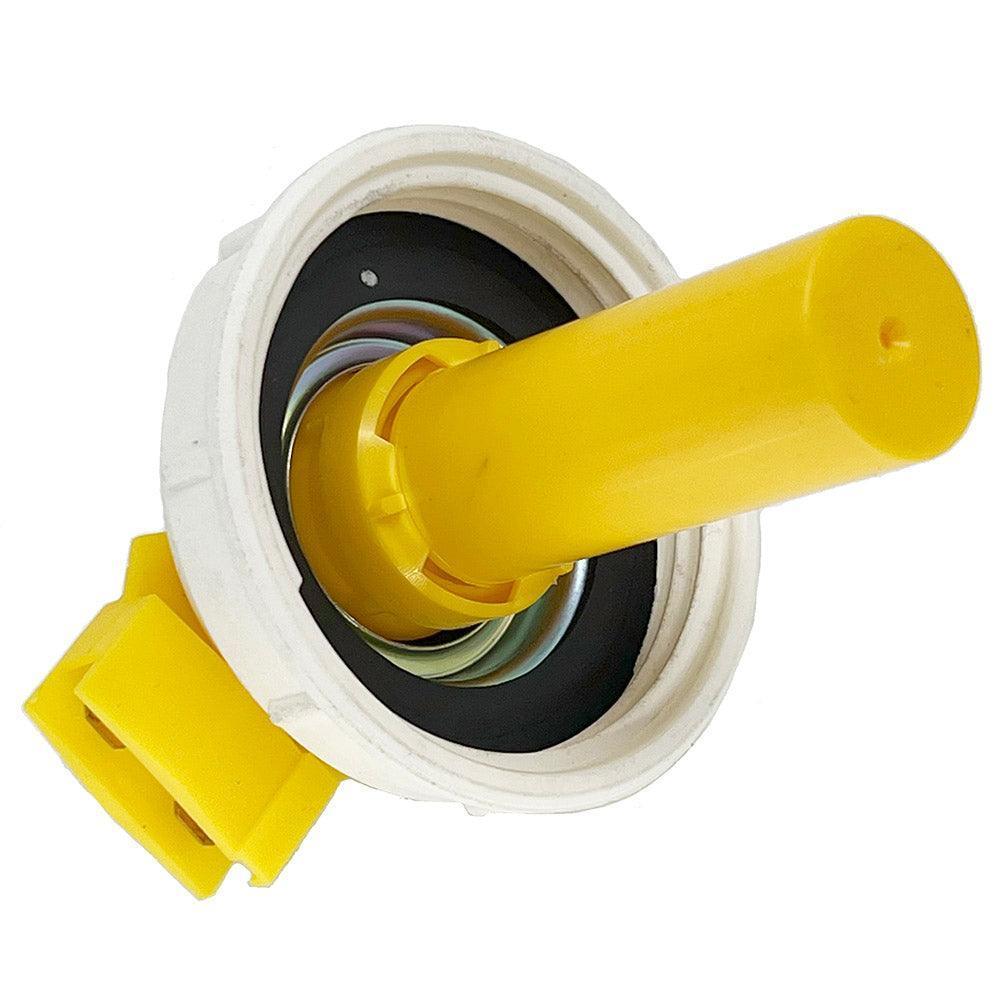

Nylon reservoir with fluid level switch in the cap for IVA compliance.
Plated steel mounting bracket with 2 x 7mm holes @ 116mm centres.
7mm 'push-on' fluid outlet.
Size 130mm high.
Maximum width (bracket) 138mm.
Maximum front to back 87mm.
Two 1/4" male spade terminals in cap for switch connection.
Press the dimple on top of the cap to test the float operation.
Capacity 330ml.
Weight 351g.Ā
DOUBLE BRAKE FLUID RESERVOIR #FLRES6
Nylon reservoir with fluid level switch in the cap for IVA compliance.
Plated steel mounting bracket with 2 x 7mm holes @ 116mm centres.
7mm 'push-on' fluid outlet.
Size 130mm high.
Maximum width (bracket) 138mm.
Maximum front to back 87mm.
Two 1/4" male spade terminals in cap for switch connection.
Press the dimple on top of the cap to test the float operation.
Capacity 330ml.
Weight 351g.Ā
DOUBLE BRAKE FLUID RESERVOIR #FLRES6
Description
Nylon reservoir with fluid level switch in the cap for IVA compliance.
Plated steel mounting bracket with 2 x 7mm holes @ 116mm centres.
7mm 'push-on' fluid outlet.
Size 130mm high.
Maximum width (bracket) 138mm.
Maximum front to back 87mm.
Two 1/4" male spade terminals in cap for switch connection.
Press the dimple on top of the cap to test the float operation.
Capacity 330ml.
Weight 351g.Ā
DOUBLE BRAKE FLUID RESERVOIR #FLRES6
