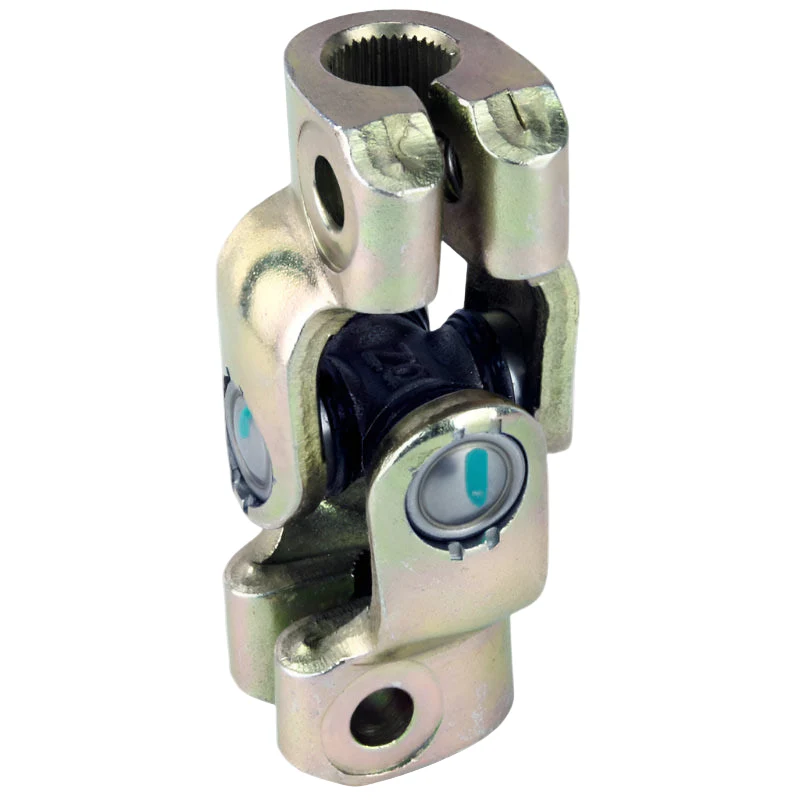

Steering Universal Joint Pressed Steel 2 x 9/16 Splines

Product image 1
1 / 2

Steering Universal Joint Pressed Steel 2 x 9/16 Splines

Here's our new, superb quality version of this popular UJ for steering columns & gear linkages.

Both ends have the popular 14mm (9/16") x 36 female spline.

Overall length 93mm long x 42mm maximum diameter.

One side of both clamping holes is tapped M8 but the thread can be drilled out to accept a 5/16" UNF nut and bolt.

Working angle 35 degrees.

Weight 345g.

PRESSED STEEL UNIVERSAL JOINT #UJP2

Here's our new, superb quality version of this popular UJ for steering columns & gear linkages.

Both ends have the popular 14mm (9/16") x 36 female spline.

Overall length 93mm long x 42mm maximum diameter.

One side of both clamping holes is tapped M8 but the thread can be drilled out to accept a 5/16" UNF nut and bolt.

Working angle 35 degrees.

Weight 345g.

PRESSED STEEL UNIVERSAL JOINT #UJP2

$8.91

Original: $29.70

-70%
Steering Universal Joint Pressed Steel 2 x 9/16 Splines—

$29.70

$8.91

Description

Here's our new, superb quality version of this popular UJ for steering columns & gear linkages.

Both ends have the popular 14mm (9/16") x 36 female spline.

Overall length 93mm long x 42mm maximum diameter.

One side of both clamping holes is tapped M8 but the thread can be drilled out to accept a 5/16" UNF nut and bolt.

Working angle 35 degrees.

Weight 345g.

PRESSED STEEL UNIVERSAL JOINT #UJP2
