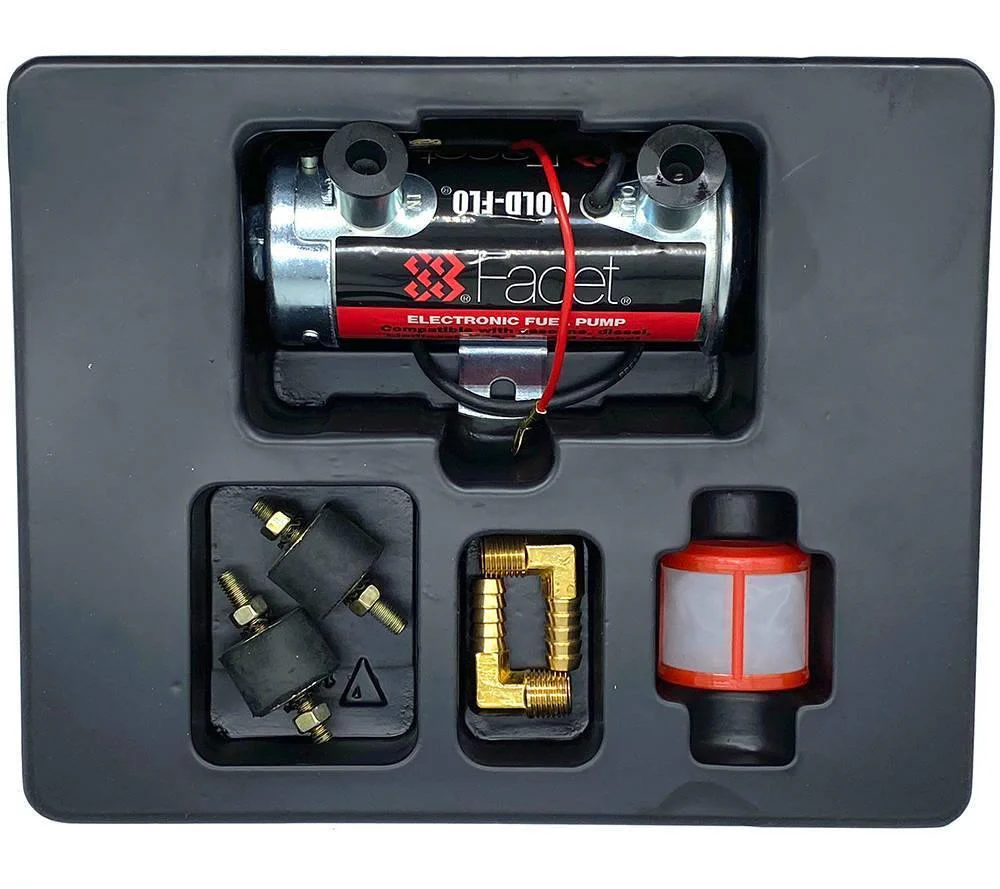

FACET CYLINDRICAL FUEL PUMP KITS . ALL WITH BRASS UNIONS,

TWO RUBBER MOUNTS, SPARE FILTER AND EARTH LINKING CABLE

Ideal For Twin DCOE Weber competition engine setups or larger engine capacity.

These pumps will provide high-performance output for everything from racing cars to heavy duty agricultural and construction machinery.

Operating Temperature:- -40º to +180° F

Complies With EEC 95/54.

Length:-140mm,  Diameter:- 54mm,

Weight:-0.7kg

FACET COMPETITION RED TOP ‘WORKS’

Manufacturers part number 480532-K

Cylindrical Fuel Pump Box Kit With 10mm Fuel Unions

Flow rate 38 gallons per hour. Delivery pressure 6 - 8psi.

Ideal for fast road use on engines up to 240 BHP.

Dry Prime Height  0.6mtrs. Thread Size:- 1/4 nptf

IMPORTANT NOTE: ALL FUEL PUMPS MUST BE FITTED WITH A PRE-FILTER ON THE INLET SIDE. RETURNED PUMPS WILL NOT BE REPLACED OR REFUNDED IF FOUND DAMAGED DUE TO DEBRIS.

TO PREVENT VAPOUR LOCK OR AIRLOCK IT IS RECOMMENDED THAT ALL FUEL PUMPS ARE MOUNTED WITH THE OUTLET HIGHER THAN THE INLET.

NOT SUITABLE FOR INJECTION.

FACET COMPETITION RED TOP ‘WORKS’ FUEL PUMP KIT #FAC4KIT £81
