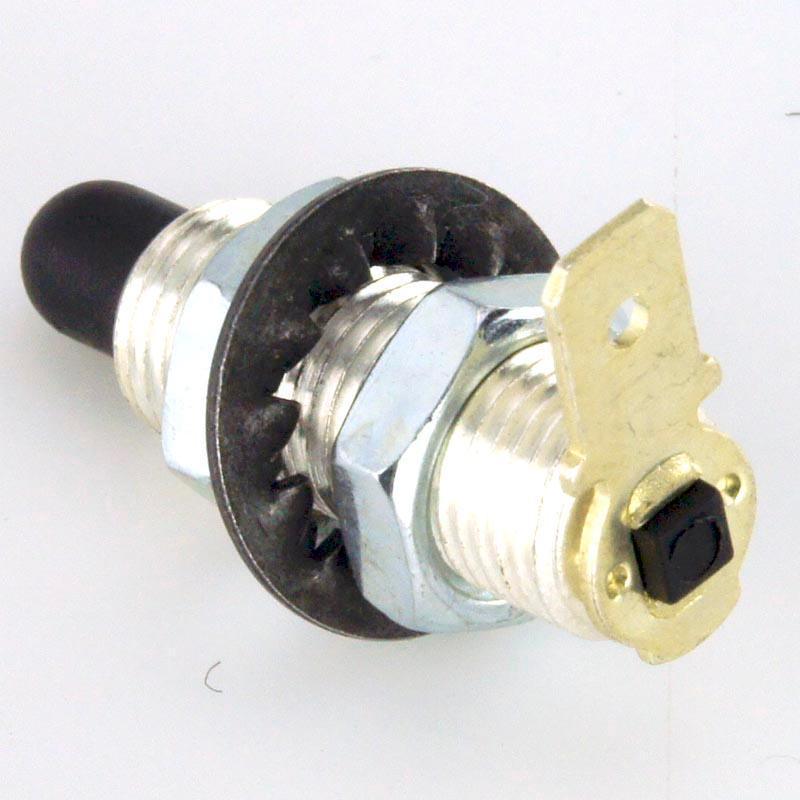

Adjustable Courtesy Switch
This sprung- plunger-type switch can be used for door courtesy lighting,
bonnet and boot lights or as an alarm trigger.
It fits in a 10mm diameter hole and it's two 13mm A/F nuts allow a maximum of 17mm adjustment.
A 1/4" male spade terminal is one contact and the plated switch body is the other.
So, if you're using this switch on a GRP or plastic panel you'll need to ensure that the switch casing is earthed.
Overall length 36mm.
Maximum plunger movement 9mm.
Thread M10 x 1mm.
ADJUSTABLE COURTESY SWITCH EACH #COURT3
This sprung- plunger-type switch can be used for door courtesy lighting,
bonnet and boot lights or as an alarm trigger.
It fits in a 10mm diameter hole and it's two 13mm A/F nuts allow a maximum of 17mm adjustment.
A 1/4" male spade terminal is one contact and the plated switch body is the other.
So, if you're using this switch on a GRP or plastic panel you'll need to ensure that the switch casing is earthed.
Overall length 36mm.
Maximum plunger movement 9mm.
Thread M10 x 1mm.
ADJUSTABLE COURTESY SWITCH EACH #COURT3
Original: $4.46
-70%$4.46
$1.34Description
This sprung- plunger-type switch can be used for door courtesy lighting,
bonnet and boot lights or as an alarm trigger.
It fits in a 10mm diameter hole and it's two 13mm A/F nuts allow a maximum of 17mm adjustment.
A 1/4" male spade terminal is one contact and the plated switch body is the other.
So, if you're using this switch on a GRP or plastic panel you'll need to ensure that the switch casing is earthed.
Overall length 36mm.
Maximum plunger movement 9mm.
Thread M10 x 1mm.
ADJUSTABLE COURTESY SWITCH EACH #COURT3
