Dash Board Illuminated Indicator Switch ON/OFF/ON
ILLUMINATED DASHBOARD INDICATOR SWITCH (on/off/on) Toggle style with screw terminals on rear.
Green translucent knob unscrews to reveal 2 watt bulb inside. Mounts through a 18mm hole.
Threaded securing ring diameter 24mm. Max. panel thickness 2mm.
Knob front projection 42mm.
Knob diameter 15mm.
Body diameter 35mm.
Body rear projection 19mm. 12 volt.

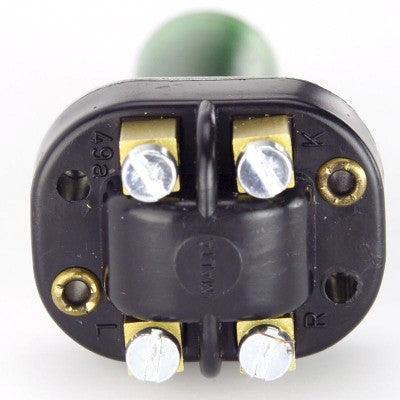

WIRING: Terminal 49a - Connect to output terminal of flasher relay.
L - Connect to live side of left indicators.
R - connect to live side of right indicators.
K - connect to -12v earth
DASHBOARD ILLUMINATED INDICATOR SWITCH ON/OFF/ONĀ #INDSW9
ILLUMINATED DASHBOARD INDICATOR SWITCH (on/off/on) Toggle style with screw terminals on rear.
Green translucent knob unscrews to reveal 2 watt bulb inside. Mounts through a 18mm hole.
Threaded securing ring diameter 24mm. Max. panel thickness 2mm.
Knob front projection 42mm.
Knob diameter 15mm.
Body diameter 35mm.
Body rear projection 19mm. 12 volt.
WIRING: Terminal 49a - Connect to output terminal of flasher relay.
L - Connect to live side of left indicators.
R - connect to live side of right indicators.
K - connect to -12v earth
DASHBOARD ILLUMINATED INDICATOR SWITCH ON/OFF/ONĀ #INDSW9
Original: $21.60
-70%$21.60
$6.48Description
ILLUMINATED DASHBOARD INDICATOR SWITCH (on/off/on) Toggle style with screw terminals on rear.
Green translucent knob unscrews to reveal 2 watt bulb inside. Mounts through a 18mm hole.
Threaded securing ring diameter 24mm. Max. panel thickness 2mm.
Knob front projection 42mm.
Knob diameter 15mm.
Body diameter 35mm.
Body rear projection 19mm. 12 volt.
WIRING: Terminal 49a - Connect to output terminal of flasher relay.
L - Connect to live side of left indicators.
R - connect to live side of right indicators.
K - connect to -12v earth
