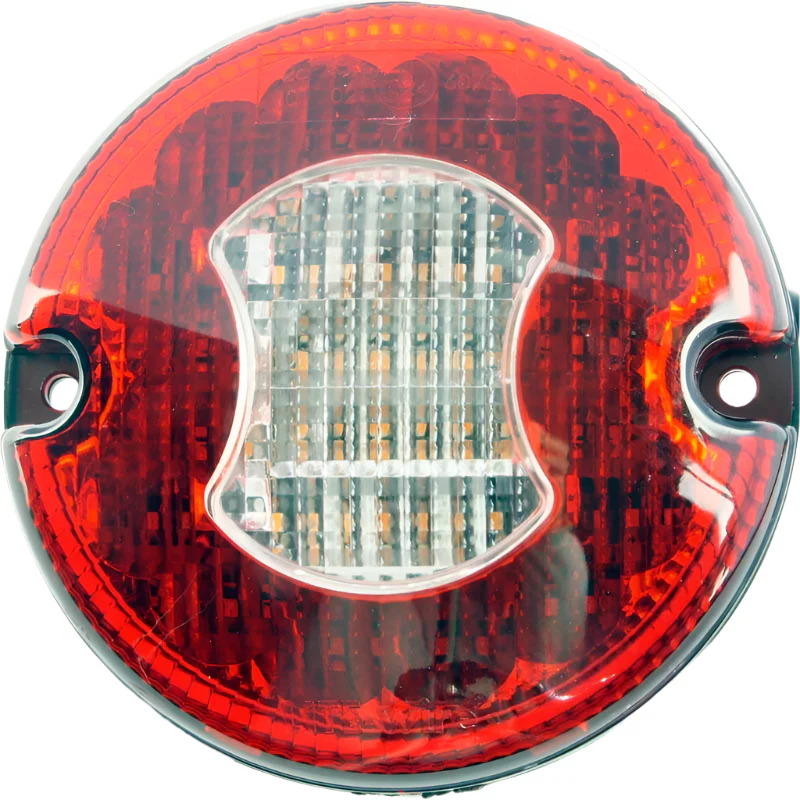

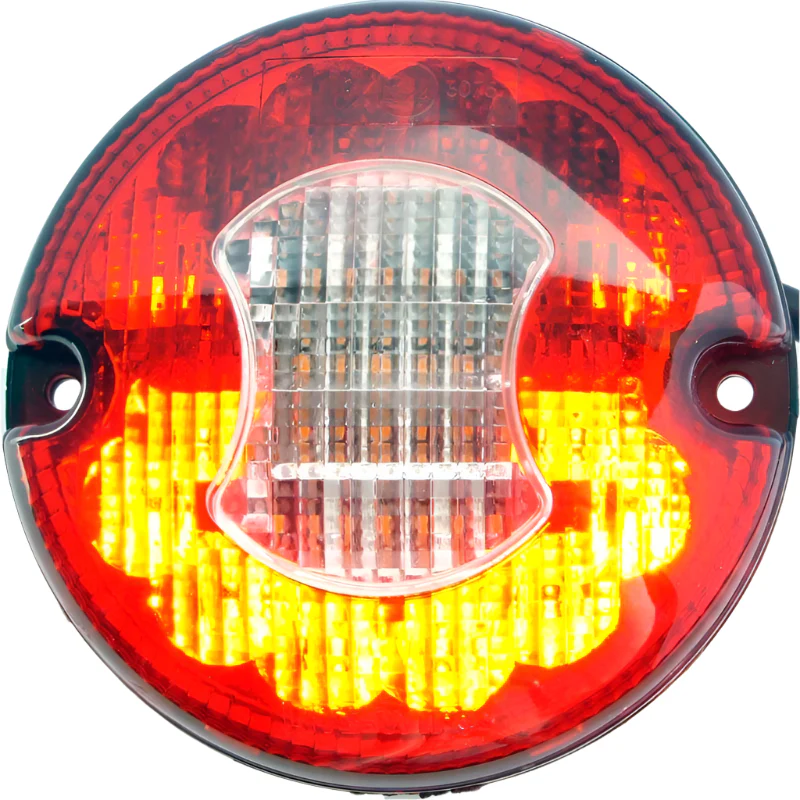

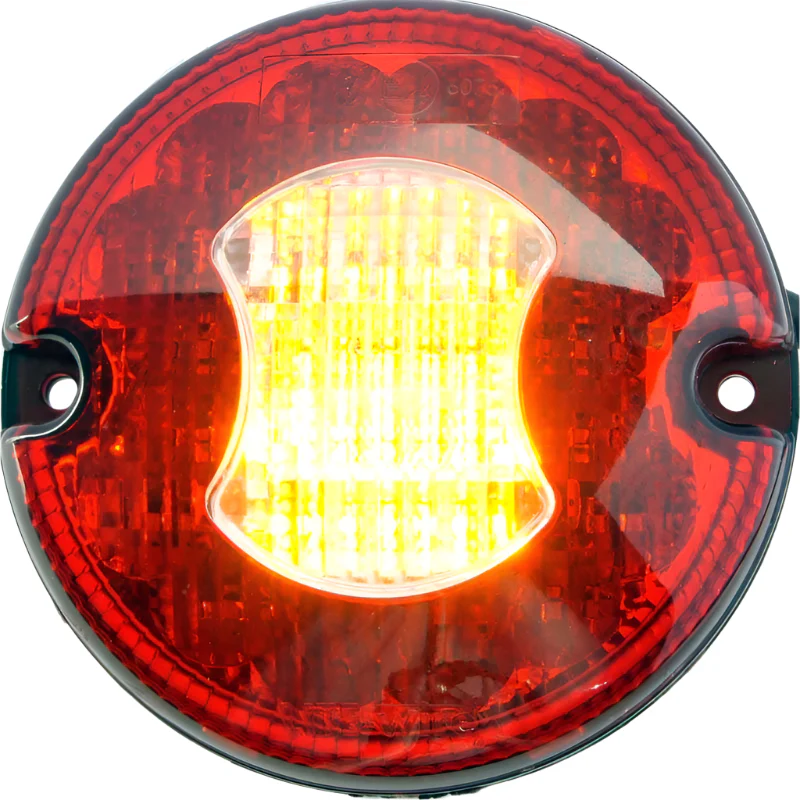

95mm Diameter Red Stop, Tail around White Lens Indicator

’E24’ Marked.

Mount through an 83mm hole.

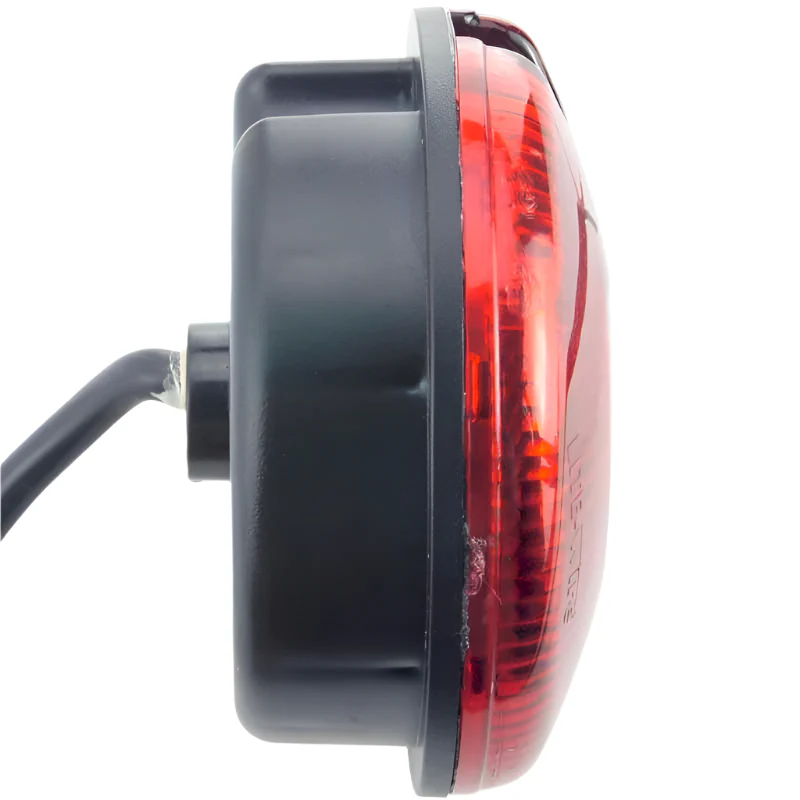

28mm depth behind lens (not including wires).

Two 4.3mm mounting holes at 80mm centres.

500mm flyleads.

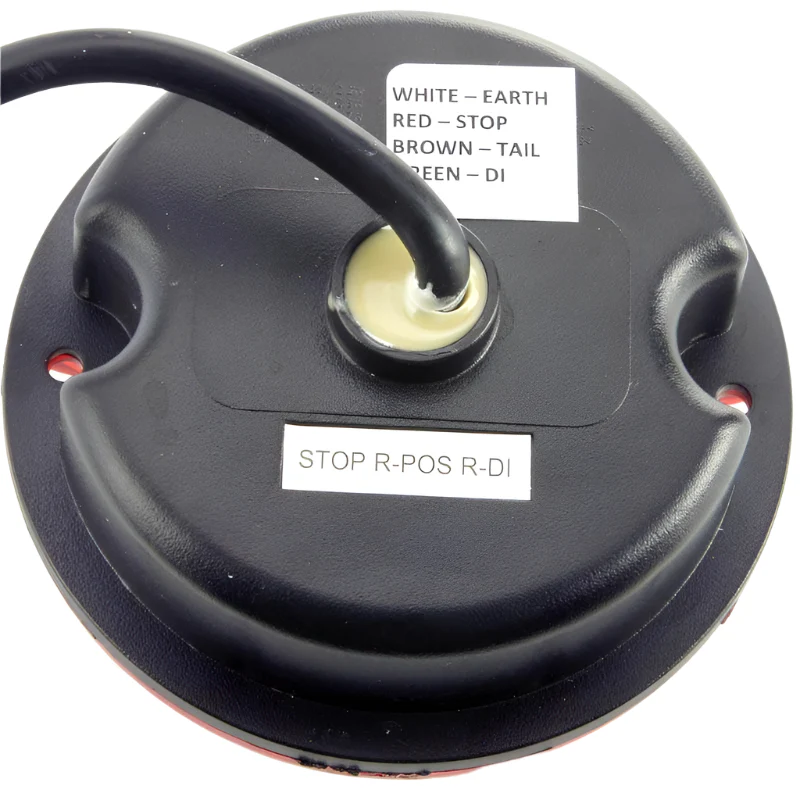

WIRING:

WHITE - Earth,

STOP - Red,

TAIL - Brown,

INDICATOR - Green.

12/24 Volt.

95mm LED STOP / TAIL / INDICATOR Pair #RL96
