7" LED DRIVING LAMP WITH TILTING MOUNT

'E6' Marked.

This mega-bright lamp has 15 x 3 watt (45 watts total) LED's for the driving beam and 6 x LED's for front side light or position light.

It has a Polycarbonate lens plus an additional clip-over polycarbonate cover.

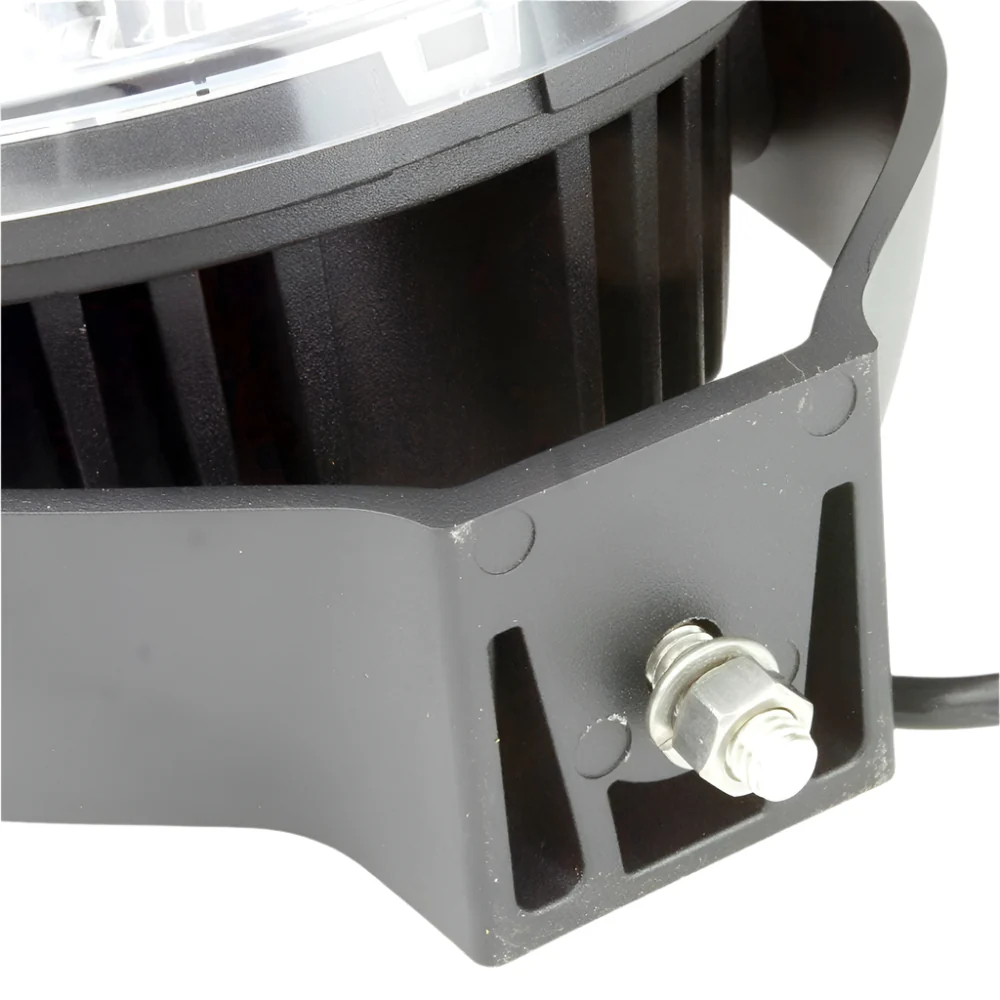

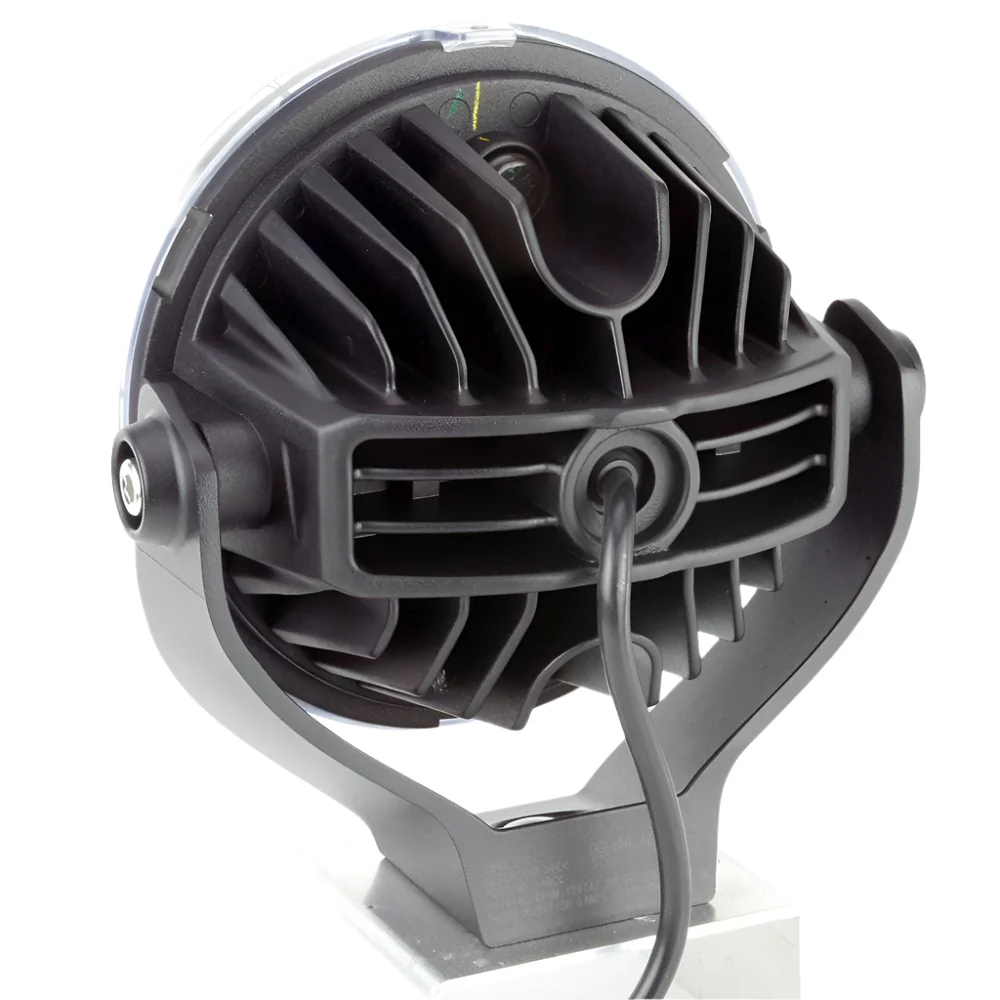

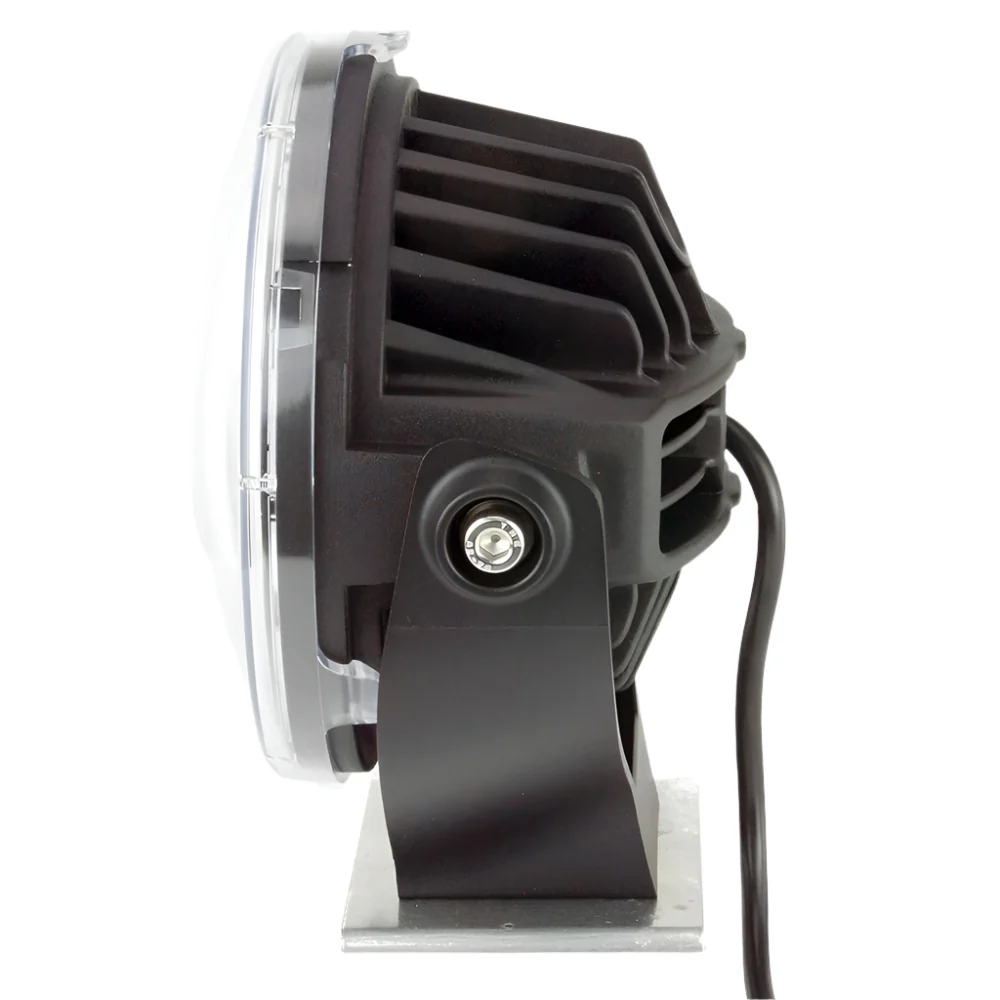

The diecast aluminium housing / heat-sink and the tilting saddle mount are satin black powder coated.

Single M10 stainless bolt mount.

Maximum height 239mm.

Maximum width 198mm.

Front to back 132mm.

Operating voltage 9 to 32 volts.

EC spec. ECE R112/ECE R7

WIRING: WHITE - EARTH

RED -  MAIN LIGHT

BLACK - SIDE LIGHT

7" LED TILTING DRIVING LLIGHT #DRVLT15
