Brake and Clutch Master Cylinder .625" (5/8") Bore With Reservoir

Product image 1
1 / 5

Brake and Clutch Master Cylinder .625" (5/8") Bore With Reservoir

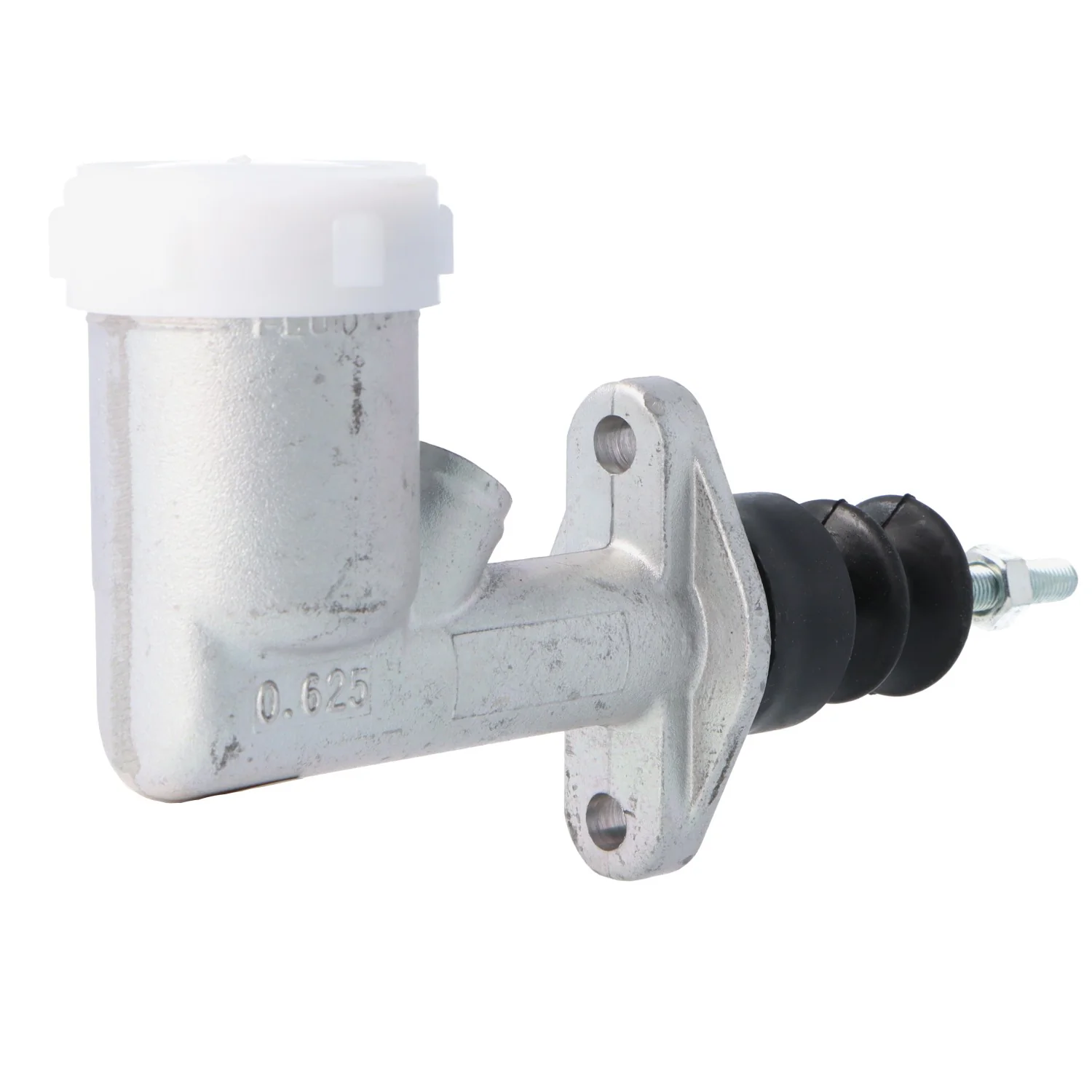

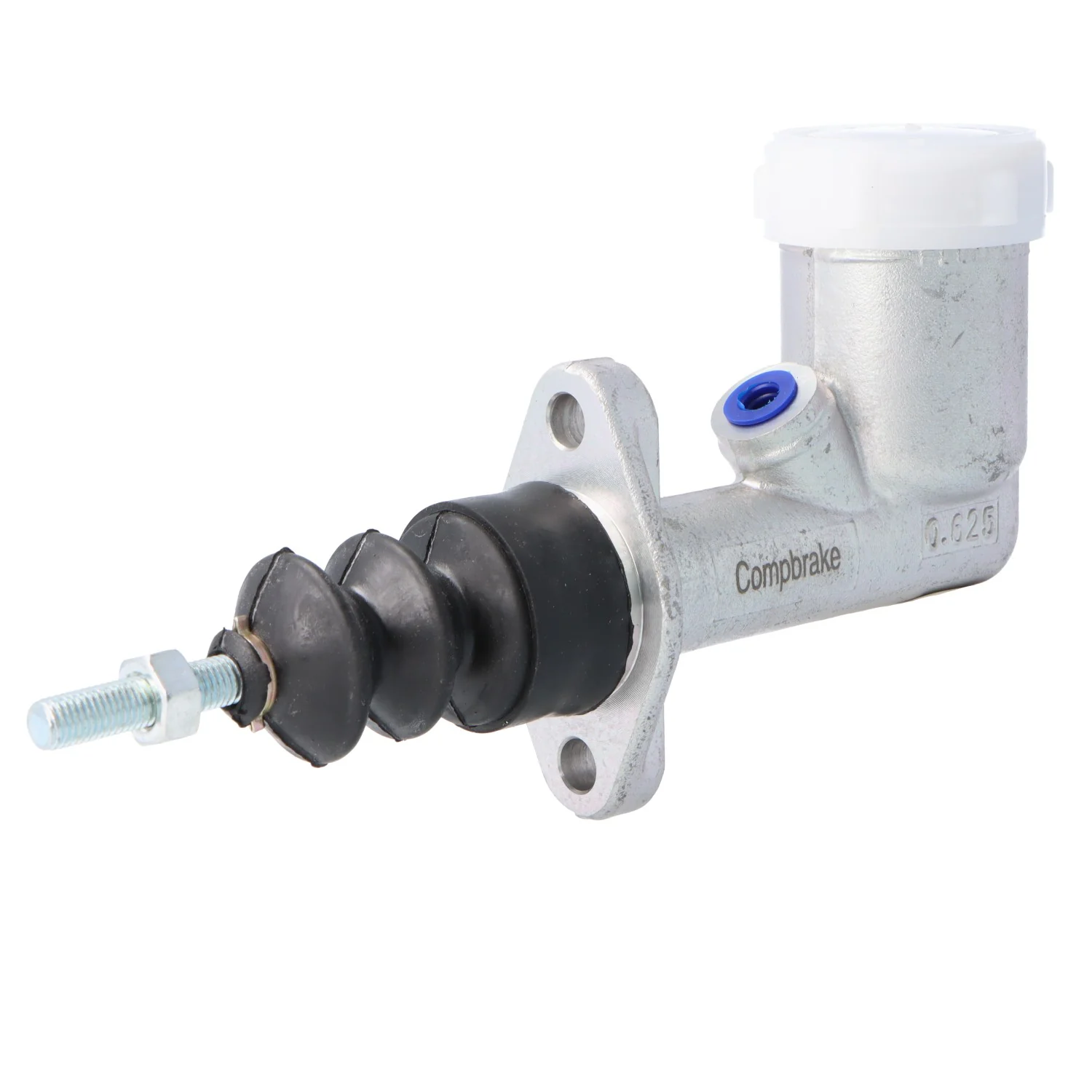

Girling style cast aluminium brake and clutch master cylinder.

5/16" UNF pushrod thread.

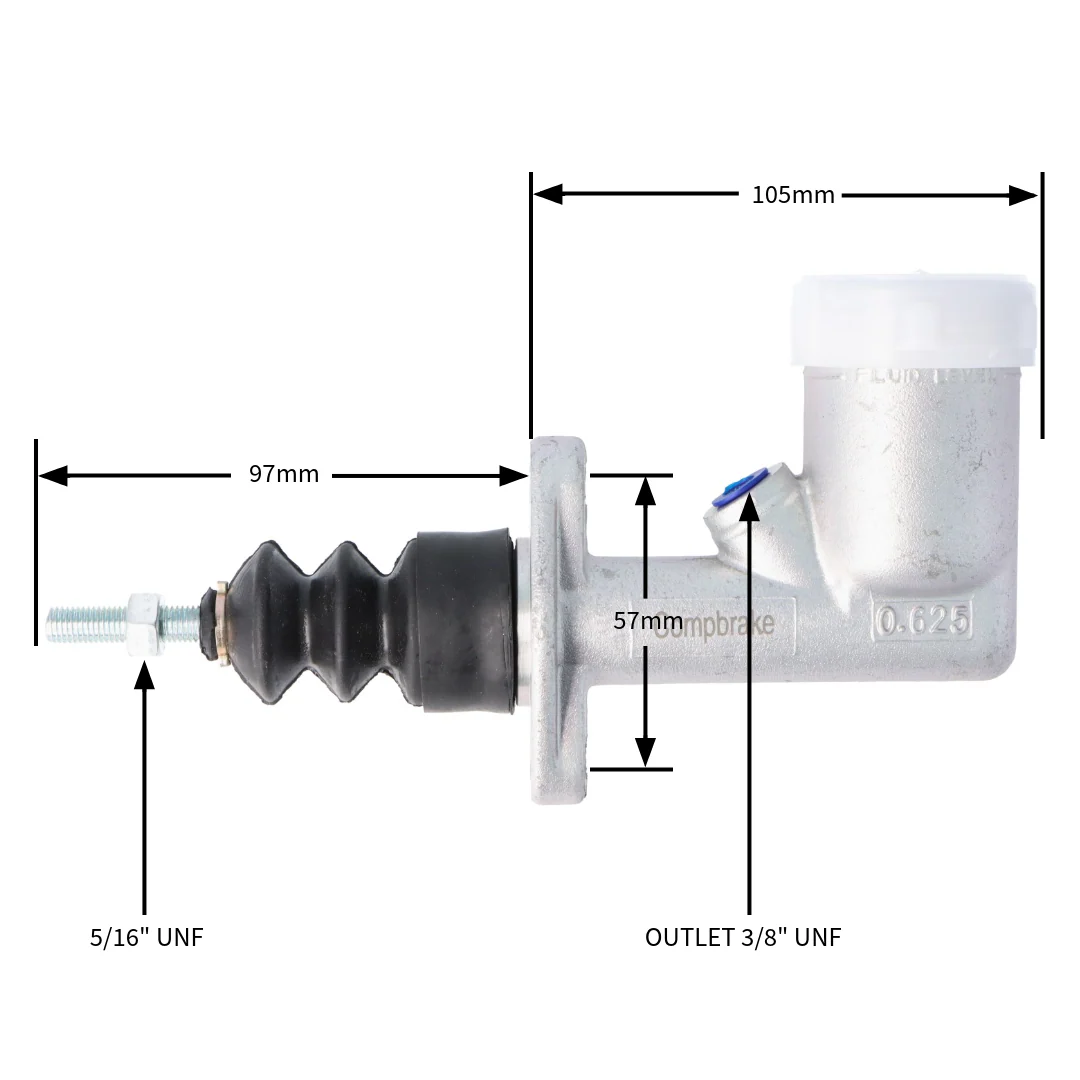

2 1/4" (57mm) mounting hole centres.

3/8" UNF outlet thread.

    • Overall Length 210mm.
    • Overall Width 55mm.
    • Overall Height 110mm.
    • Bore 0.625".
    • Stroke 1.15" (29mm).
    • Moves 1.98cc of fluid per 1cm of piston travel.
    • Accepts our #FLCAP2 with fluid level float switch.

    BRAKE AND CLUTCH MASTER CYLINDER 6.25" (5/8") BORE WITH RESERVOIR #MA625I

Girling style cast aluminium brake and clutch master cylinder.

5/16" UNF pushrod thread.

2 1/4" (57mm) mounting hole centres.

3/8" UNF outlet thread.

    • Overall Length 210mm.
    • Overall Width 55mm.
    • Overall Height 110mm.
    • Bore 0.625".
    • Stroke 1.15" (29mm).
    • Moves 1.98cc of fluid per 1cm of piston travel.
    • Accepts our #FLCAP2 with fluid level float switch.

    BRAKE AND CLUTCH MASTER CYLINDER 6.25" (5/8") BORE WITH RESERVOIR #MA625I

$40.50
Brake and Clutch Master Cylinder .625" (5/8") Bore With Reservoir—
$40.50

Description

Girling style cast aluminium brake and clutch master cylinder.

5/16" UNF pushrod thread.

2 1/4" (57mm) mounting hole centres.

3/8" UNF outlet thread.

    • Overall Length 210mm.
    • Overall Width 55mm.
    • Overall Height 110mm.
    • Bore 0.625".
    • Stroke 1.15" (29mm).
    • Moves 1.98cc of fluid per 1cm of piston travel.
    • Accepts our #FLCAP2 with fluid level float switch.

    BRAKE AND CLUTCH MASTER CYLINDER 6.25" (5/8") BORE WITH RESERVOIR #MA625I
